Calculations for the Reconstruction Project of the Church in Dmytriv

Yevhen Nahirnyi

Basic information

ID: ФНаг-Лев-Арх-2451
Author: Yevhen Nahirnyi
Name: Calculations for the Reconstruction Project of the Church in Dmytriv
Technique: drawing
Material: tracing paper Indian ink
Dimensions (height x width, cm): 44.2 x 29.2

Additionally

Genre: architecture
Provenance: Nahirnyi-Lev Fund
Place: Dmytriv village, Lviv region

Information about author

Author: Yevhen Nahirnyi
Country: Austro-Hungarian Empire, the Ukrainian SSR, now Ukraine

Object description

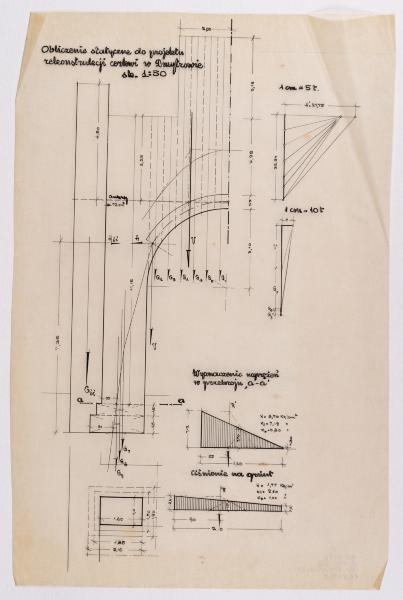

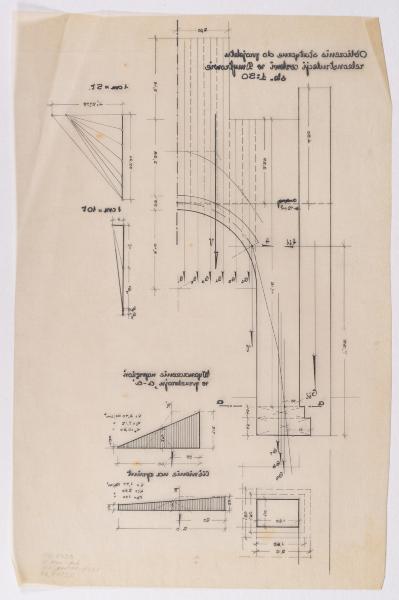

Calculations for the reconstruction project of the church in Dmytriv village with drawings and calculations.

Inscriptions

At the top is an inscription in Polish in black ink: "Static calculation for the project of church reconstruction in Dmytriv / sc: 1:50". Below are inscriptions in Polish in black ink: "Determination of tension in cross-section ‘a-a’" and "Pressure on the ground".
